Axles 1967
#6

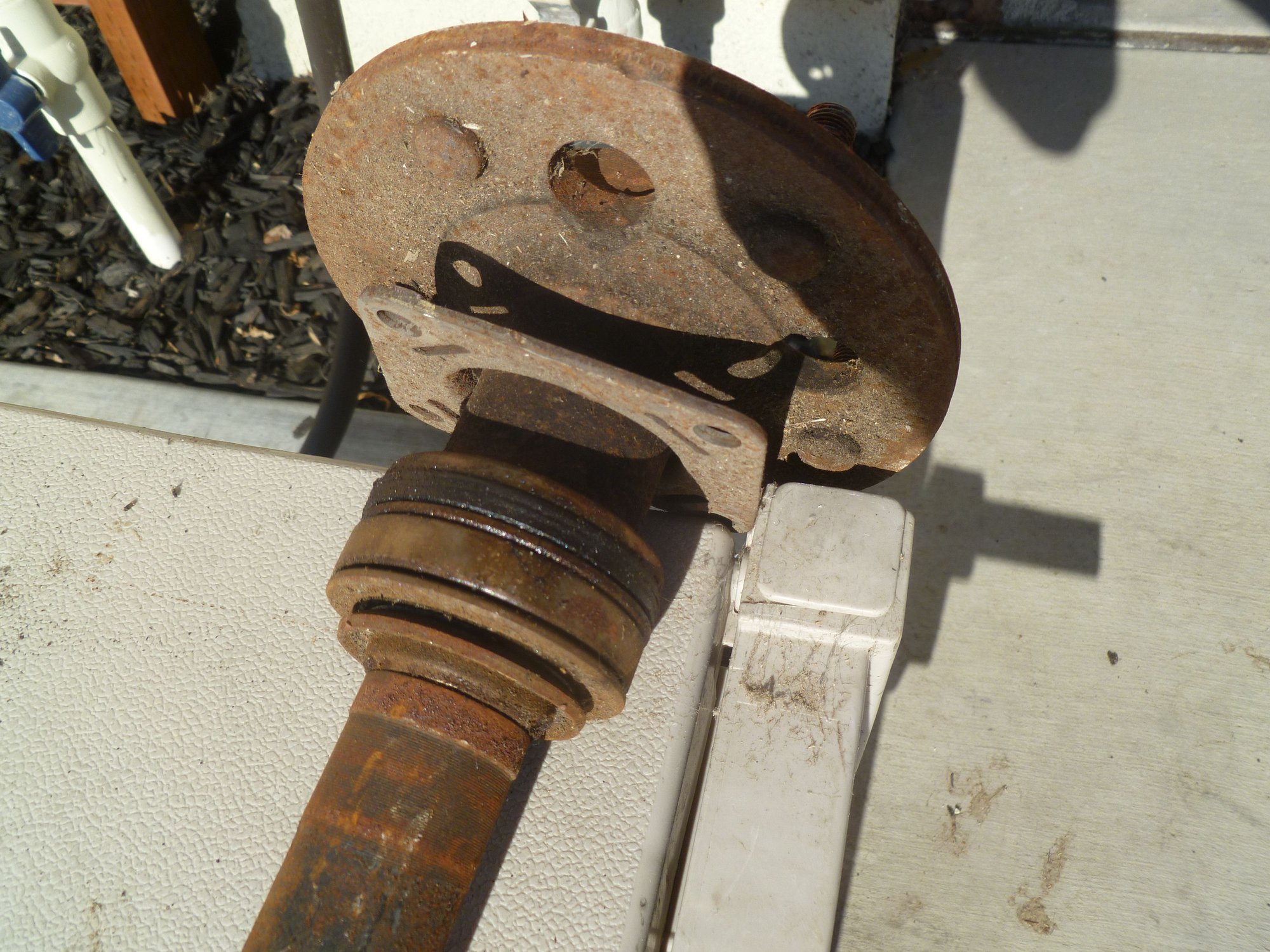

I will recheck. I pulled them about 30 years ago, I'm sure it was a 67, and I was hoping they were 31 spline, and weren't.That doesn't mean it could not have had a 70 rear end. I wanted them for a 70, and thought the axles were the same,only the seal and bearings were different? Will try post better photo.
Last edited by 442Harv; May 27th, 2021 at 08:26 AM. Reason: add photo
#7
That is definitely the later style with the axle seal sammiched between the bearing and the retainer. That style bearing and seal was used on the 1970 O-Type rearend and also on the 1971-up 8.5" 10 bolt axles.
SuperCars Unlimited has some good pictures and descriptions of the early (67-69) and late (70) O-Type axle shafts, seals, and bearings.
https://www.supercarsunlimited.com/i...id/diff_id.htm
SuperCars Unlimited has some good pictures and descriptions of the early (67-69) and late (70) O-Type axle shafts, seals, and bearings.
https://www.supercarsunlimited.com/i...id/diff_id.htm
#8
Fun 71, have to agree with you. I thought when I pulled them it was a 67, but must have had a 70 rear end? I also thought that the 70 had the big bearing retainer behind the bearing.Maybe now I should save them, as I have a 70.
